Standard Features

Heavy-duty two stage cast iron compressor pump Made in Somerset, PA USA Splash lubricated Finned intercooler Belt driven with a large flywheel for extra cooling and easier start-up Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil Directional air shroud for reduced pump temperatures Totally enclosed heavy-duty beltguard 8 & 15 gallon tanks are low profile, powder coated twin tank receivers 17 and 30 gallon tanks are powder coated and ASME certified

Convenient lifting handles Anti-vibration feet Pneumatic tire(s) Protectively mounted fittings Manual tank drain(s) Large canister intake filter with replaceable filter elements Special unloading valves to assist in motor/engine starting Stainless steel braided discharge hose Tank gauge Regulator and outlet pressure gauge Pressure relief safety valve Designed, tested and proven to meet the demands of the construction and rental industry

Electric Constant run control set at 145-175 PSI High quality pilot valve Industrial/Commercial grade UL Listed electric motor Thermal overload motor protection 6 ft power cord Options (Electric Motor) Start-Stop control Dual control Dual voltage switch On-Off switch Two wheel option (8 & 15 gallon models) Oil sight glass Air line filter Lubricator Other pressures available upon request

Gasoline Engine Constant run control set at 145-175 PSI High quality pilot valve Pneumatic throttle idle control Honda GX Series OHV Engine Options (Gas Engine) Two wheel option (8 & 15 gallon models) Oil sight glass Air line filter Lubricator Electric start Other engine options available upon request Other pressures available upon request

Model	Pump	HP	Tank Gallon	Drive	CFM @ 100 PSI	CFM @ 175 PSI
GT8HGB-8P2	GT	8	8	Honda GX Gasoline Engine Recoil Start	15.7	15.4
GT8HGB-15P2			15

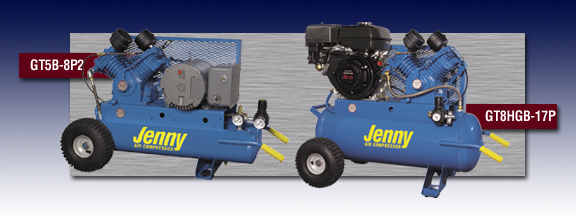

GT8HGB-17P			17
GT8HGB-30P			30
W11HGB-30P	W	11	30	Electric Start	21.0	17.6
